Quick Summary
-
O-Span stands for Operation Span.
-
Automated means the task runs on a computer, scores automatically, and does not require manual calculations.
-
The task involves remembering sequences of letters while solving simple math problems.
-
The math problems are very easy.
-
There are practice blocks before the real test starts.
-
The final O-Span score ranges from 0 to 75 points.
Introduction
The Automated O-Span task is a well-known test for measuring working memory (Unsworth and colleagues, 2005). It takes about 20 minutes to complete. It is based on the original O-Span test by Turner and Engle (1989). The automated version runs on a computer and calculates the score automatically.
| The task is of interest for a number of reasons. In part, it correlates with fluid intelligence. For example, in the study of Unsworth and colleagues (2005), table 2, a correlation between the automated O-span task and Raven’s matrices was reported (p=.448, p<.01). |
In this task, you need to remember a sequence of letters (for example, Q, N, P, Y). This is similar to a simple memory test. However, before each letter appears, you must solve a simple math problem, such as:
3 × 2 + 1 = ?
This makes it harder to remember the letters because your attention is split between solving math problems and memorizing letters. You can try the task yourself using the further link below (note that it takes 20 minutes to complete).
Before the real test, there are practice blocks to help you get used to the task:
-
A short block with only letters (sequences of 2 or 3 letters).
-
A short block with only math problems (15 simple math problems).
-
A practice session with both letters and math problems (6 trials).
-
The real test (15 trials).
The number of letters in a sequence varies. Some sequences contain only 2 letters, while others contain up to 7 letters. Letters are chosen from the following set: F, H, J, K, L, N, P, Q, R, S, T, Y. A letter never repeats within a single sequence.
How well do people do?
The task is actually quite difficult. In the original study by Unsworth and colleagues (2005), they started with 296 participants aged 18 to 35 year old. They were recruited via a community newspaper advertisements but no further demographics were reported. Therefore, this is difficult to generalize to the general population.
15% of their participants were excluded from further analyses because they did not manage to have less than 15% mistakes in their math problems. In total, the task has 33 math problems (15 untimed practise trials, and then a further 18 in the practise and real block). That means you could make only 5 mistakes in any of the math tasks, which seems quite a strict criterion.
The study reports for people who are that good in the math problems managed an O-Span score of just 40 points (median score).
If you think about it, if you can manage all the easiest sequences of 3 and 4 letters, you already can get 35 points, and if you can then get one more correct in the harder ones, you are already at the average.
| In the original study, there were people who could do much better. 25% of people who managed the math criterion of less than 15% mistakes scored 51 points or more. |
Task Structure
The table below shows the number of trials in each block and the sequence lengths:
Block |
Total Trials |
Letter Sequence Lengths |
Practice - Letters |
4 |
2 or 3 |
Practice - Math |
15 |
N/A |
Practice - Full Task |
3 |
2 |
Real Test |
15 |
3 to 7 |
In the final block (real test), there are 15 trials for each sequence length (3, 4, 5, 6, or 7 letters). You earn points for each completely correct trial. A 3-letter sequence earns 3 points, a 4-letter sequence earns 4 points, and so on.

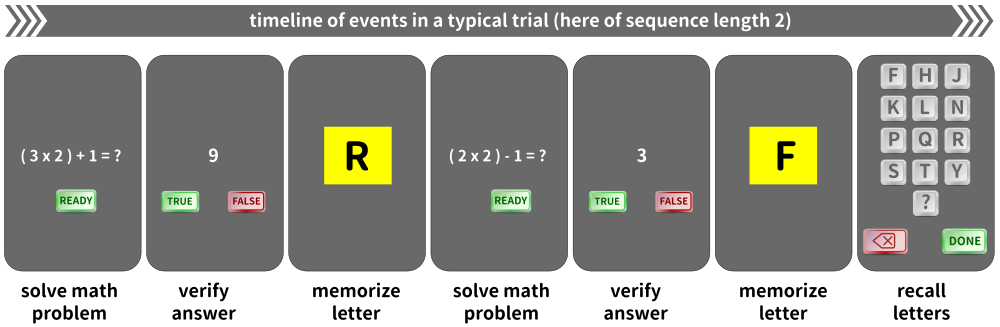

Timing of a Trial
Each trial follows these steps:
-
A math problem appears.
-
In the practice blocks, you have unlimited time.
-
In the real test, the time limit is based on your response speed in the earlier math practice block.
-
-
You press a button when you are ready to answer.
-
A possible answer (true or false) is shown, and you must decide if it is correct. You have unlimited time for this decision.
-
A letter appears for 800 milliseconds (ms).
-
A new math problem appears, and the cycle repeats.
-
After all math problems and letters are shown, you must recall the letters in order by clicking on them.
-
If you make a mistake, you can use the backspace button on the key pad.
-
If you are unsure about a letter, you can enter a question mark (?).
-
Implementation Details
Some details in Unsworth et al. (2005) potentially ambiguous. Professor Unsworth provided additional clarifications to PsyToolkit:
-
Timing of Math Problems: The paper says math timing is based on performance in the practice block. However, it was unclear which response was used (first response or final decision). Prof. Unsworth confirmed that only the first response is timed, while the true/false decision has unlimited time.
-
Math Timing Calculation: The time limit in the real test is based only on correct math responses in the practice block.
Other issues you might want to reflect on when using this task:
-
Timing Strategy Issue: If someone rushes through the math practice and makes errors, they may get less time in the real test, which could hurt their score. On the other hand, if someone takes a long time, they may get more time in the real test, giving them an advantage. At the same time, a timing restriction is necessary to prevent people from using the math task to extensively rely on rehearsing the memorized letter sequence.
-
Feedback Timing: The paper states that participants see trial feedback for only 2 seconds. This seems too short. A longer or self-paced feedback display would make more sense.
-
Feedback Content: The feedback for letters and math is inconsistent. Letter recall feedback shows the number of correct letters, while math feedback shows the number of errors.
-
Math Accuracy Feedback: The paper says that math accuracy is shown during letter recall, but the figures in the paper do not display this. We assume it was intended to be shown after letter recall.
Scoring
The O-Span score is based on performance in the final block (15 trials). You earn points only for completely correct trials (where both the math and letter sequence are 100% correct).
You get between 3 and 7 points for a sequence. For example, a sequence with three math problems and three letters gets you 3 points; a sequence with four math problems and four letters gets you four points; etc.
The highest possible score is 75 points.
Additionally reported scores:
-
O-Span percentage: The percentage of trials completed correctly.
-
Math accuracy: The percentage of correctly solved math problems.
-
Letter recall accuracy: The percentage of sequences remembered correctly (even if math answers were incorrect).
Run the task
| This is the full official version of the task which takes 20 minutes. At the end you get your score. |
Data Output File
For each trial, there is one line.
Column |
Description |
1 |
Block number |
2 |
Block name |
3 |
O-Span score so far (0–75), the last line of the data file contains the total O-Span score for the participant |
4 |
Letters correct so far (0-75), the last line of the data file contains the total letters correct score for the participant |
5 |
Math problems correct so far (0-75), the last line of the data file contains the total math problems correct score for the participant |
6 |
Reaction time for true/false decision |
7 |
Reaction time for completing letter recall |
8 |
Max allowed reaction time for math problem (when pressing "ready") |
9 |
Percentage math problems correct in current block (this is shown to participants) |
10 |
The trial’s set size (2-7). Set size two only in practise blocks |
11 |
The trials' number of math problems correctly solved |
12 |
The trials' number of math problems incorrectly solved (math errors) |
13 |
The number of letters correctly remembered in the current trial |
PsyToolkit code
Click to expand the PsyToolkit script code (part of zip file below)
options
background color 80 80 80 # dark grey
set &maxMathRT1 999999 ## at start, essentially unlimited time, but in Block 2, we calculate needed time
set &maxMathRT2 60000 ## long time for answer (up to minute, but people will respond more quickly)
include bitmaps.txt
fonts
regular arial 20
medium arial 30
large arial 40
part createMathProblem
# -- create math problem with answer between 1 and 9 -----------------------
# choose numbers until answer is within simple 1 to 9 range
set $mathProblemCounter increase ## we create multiple ones and keep track
set $answer 0
while $answer < 1 or $answer > 9
set $operation1 random 1 2 # 1 = multiply , 2 = division
set $operation2 random 1 2 # 1 = add , 2 = subtract
set $digit1 random from 2 4 6 8 10 # only even numbers
set $digit2 random 1 2
set $digit3 random 1 5
if $operation1 = 1 and $operation2 = 1 # * and +
set $answer expression $digit1 * $digit2 + $digit3
fi
if $operation1 = 1 and $operation2 = 2 # * and -
set $answer expression $digit1 * $digit2 - $digit3
fi
if $operation1 = 2 and $operation2 = 1 # / and +
set $answer expression $digit1 / $digit2 + $digit3
fi
if $operation1 = 2 and $operation2 = 2 # / and -
set $answer expression $digit1 / $digit2 - $digit3
fi
while-end
# -- now set the alternative (wrong) answer ---------------------------------
set &&wrongAnswerOptions range 1 10
set &&wrongAnswerOptions remove value $answer
set $wrongAnswer &&wrongAnswerOptions use random ## take one random from possible wrong anwers
# -- now choose what is show, correct or wrong answer
set $mathMCQ random 1 2 ## this is needed later for determining if answer was correct
if $mathMCQ = 1 ## correct answer is shown
set $showPossibleMathAnswer $answer
else
set $showPossibleMathAnswer $wrongAnswer
fi
# -- now make the operation is text format ----------------------------------
if $operation1 == 1
set %operation1text "×"
else
set %operation1text "÷"
fi
if $operation2 == 1
set %operation2text "+"
else
set %operation2text "-"
fi
# -- now create the math problem text
set %mathProblem "( " $digit1 " " %operation1text " " $digit2 " ) " %operation2text " " $digit3 " = ?"
# -- finally, we store the math problems for later use
set %%mathProblems append %mathProblem ## the full texts of the mathproblems (there will be up to 7)
# CHECK IF FOLLOWING LINE IS NEEDED
set &&mathProblemsAnswerStimuli append $showPossibleMathAnswer ## answers will be correct or not, they will be in here
set &&mathProblems_correct append $mathMCQ ## for correct answers contains 1, for wrong answers 2
task aoSpan
set $currentSetSize &&setSizesForBlock remove first ## this randomly selects setsize as set at start of each block
set &&trialMathScores clear ## needed for adding math scores of one trial, needs resetting each trial
set %allletters "F H J K L N P Q R S T Y"
set %%lettersText split %allletters
# -- only one time in the whole experiment will we calculate the needed max RT for math solving as in paper
if &determineMathMaxRT = 1
set $tmpLen &&mathRT1s size
if $tmpLen > 0 ## people have to done at least some trials correctly
set &determineMathMaxRT 0 # this way, this will not be called again
set $tmpMean &&mathRT1s mean
set $tmpSD &&mathRT1s sd
set &maxMathRT1 expression 2 * $tmpSD + $tmpMean
fi
fi
# -- create 7 different math problems (you only need as many as the $currentSetSize, but this is easier coding
#
set %%mathProblems " "
set %%mathProblems clear ## the full texts of the mathproblems (there will be up to 7)
set &&mathProblemsAnswerStimuli clear ## answers will be correct or not, they will be in here
set &&mathProblems_correct clear ## for correct answers contains 1, for wrong answers 2
part createMathProblem
part createMathProblem
part createMathProblem
part createMathProblem
part createMathProblem
part createMathProblem
part createMathProblem
#
# -- now draw letters from setsize -------------------------------------------
set &&letterOptions range 1 12
set &&lettersNumbers sample $currentSetSize from &&letterOptions
# save "Remember letters (as numbers): " &&lettersNumbers
##
## -- now all stimuli are ready for presentation -----------------------------
##
## now we cycle through math problems and letters using a while loop
set $counter 1
while $counter <= $currentSetSize
## ---------------------------- show math problem (if needed)
if &components = 2 or &components = 3 ## 2 or 3 : maths only or both tasks
font medium
show text %%mathProblems[$counter]
show bitmap keyReady 0 100
readmouse l 1 &maxMathRT1 range SHOW_COUNTER SHOW_COUNTER
set $mathRT1 RT ## use this for later maxMathRT calculation
clear -1 -2
## ---------------------------- show possible answer and True/False
show text &&mathProblemsAnswerStimuli[$counter] 0 0
show bitmap keyTrue -200 100
set $trueStimulus SHOW_COUNTER
show bitmap keyFalse 200 100
set $falseStimulus SHOW_COUNTER
## -- now if this is a correct answer, the correct key is $trueStimulus, otherwise $falseStimulus
# save "all mathProblemsAnswerStimuli : " &&mathProblems_correct
# save &&mathProblems_correct[$counter]
if &&mathProblems_correct[$counter] = 1
set $expectedResponse $trueStimulus
else
set $expectedResponse $falseStimulus
fi
# save "expected math response stimulus : " $expectedResponse " of options : " $trueStimulus $falseStimulus
readmouse l $expectedResponse &maxMathRT2 range $trueStimulus $falseStimulus ## $expectedResponse is the correct stimulus to be clicked
set $mathRT2 RT ## use this for later maxMathRT calculation
clear -1 -2 -3
## -- check if correct
if STATUS = CORRECT
set &&trialMathScores append 1 ## this is for the trial calculation
set &&mathCorrectBlockCount append 1 ## this is for the whole block percentage correct
set &&mathRT1s append $mathRT1 ## we collect this to later determine max RT time in real block (as in paper)
set &&mathRT2s append $mathRT2
else
set &&trialMathScores append 0 ## this is for the trial calculation
set &&mathCorrectBlockCount append 0 ## this is for the whole block percentage correct
fi
fi # end of showing math problem
## ---------------------------- show letter to memorize on yellow background (if needed)
if &components = 1 or &components = 3 # 1 or 3 : letters only or both tasks
set $tmp &&lettersNumbers[$counter]
font large
show rectangle 0 0 150 100 yellow
show text %%lettersText[$tmp] 0 0 black
delay 800
clear -1 -2
fi
set $counter increase
while-end
## ---------------------------------------------------------------------------
## now that all letters have been shown, we do the recall (if needed)
## ---------------------------------------------------------------------------
if &components = 1 or &components = 3 ## 1 or 3 : letters only or both tasks
##
## first show the pad with 12 letters, a blank, clear and exit
##
set $left -100
set $right 100
set $line1 -250 # they are 80 px apart
set $line2 -170
set $line3 -90
set $line4 -10
set $line5 70
set $line6 150
#
if &PADINSTRUCTION < 3 ## only need to show this twice
show bitmap instructionPad -270 -200
set &PADINSTRUCTION increase
fi
#
show bitmap keyF $left $line1
show bitmap keyH 0 $line1
show bitmap keyJ $right $line1
#
show bitmap keyK $left $line2
show bitmap keyL 0 $line2
show bitmap keyN $right $line2
#
show bitmap keyP $left $line3
show bitmap keyQ 0 $line3
show bitmap keyR $right $line3
#
show bitmap keyS $left $line4
show bitmap keyT 0 $line4
show bitmap keyY $right $line4
#
show bitmap keyQuestionMark 0 $line5
#
show bitmap keyDelete -200 250
show bitmap keyDone 250 250
set $counterKeyDone SHOW_COUNTER
set $counterKeyDelete expression SHOW_COUNTER - 1
set $beginKeyRange expression SHOW_COUNTER - 14
set $endKeyRange expression SHOW_COUNTER
#
##------------------------------------------------------------------------------
# now let people key in buttons
set $startPosition -300
set &&selectedKeys clear
timestamp letterTaskstartTime ## set the starttime, we need this for calculating total RT
while $pressedKey != $counterKeyDone
readmouse l 1 999999 range $beginKeyRange $endKeyRange
set $pressedKey UNDER_MOUSE
set $tmpLength &&selectedKeys size ## length before adding
if $pressedKey == $counterKeyDelete
if $tmpLength > 0
set &&selectedKeys remove last
set $tmpStimulusLetter &&selectedStimuli remove last
clear $tmpStimulusLetter
set $startPosition decrease 60
fi
else
## you cannot enter more than 7 keys
if $tmpLength < 7
set $keyPressedCount expression $pressedKey - $beginKeyRange + 1
set &&selectedKeys append $keyPressedCount
## now we need to calculate the bitmap number of the keypressed
## bitmaps have numbers (not just names): keyF = 1 etc
set $tmpBitmapNumber expression $keyPressedCount
show bitmap $tmpBitmapNumber $startPosition $line6
set &&selectedStimuli append SHOW_COUNTER
set $startPosition increase 60
fi
fi
while-end
timestamp currentTime
set $letterTaskRT timestamp-diff letterTaskstartTime currentTime
fi
## ------------------------------------------------------------
## now calculate the scoring for the trial
## ------------------------------------------------------------
## how many letters correct?
## for this, we cycle through all letters needed
set $counter 1
while $counter <= $currentSetSize
if &&selectedKeys[$counter] = &&lettersNumbers[$counter]
set $trialSumLetterScore increase
set &&lettersCorrectBlockCount append 1 # if correct (this is for overall correct letter count)
else
set &&lettersCorrectBlockCount append 0 # if incorrect (this is for overall correct letter count)
fi
set $counter increase
while-end
## -- how many math problems correct and errors? --
set $trialSumMathScore &&trialMathScores sum
set $trialMathErrors expression $currentSetSize - $trialSumMathScore
## -- over whole block, we calculate percentage of correct math problems
if &components > 1 ## only if math is used (not in block 1)
set $tmpCorrectCount &&mathCorrectBlockCount sum
set $tmpMathProblemsSoFar &&mathCorrectBlockCount size
set $mathCorrectPerc expression $tmpCorrectCount / $tmpMathProblemsSoFar * 100
set $mathCorrectPerc round
fi
## -- trial feedback to participant
clear screen
## make sure you use different word for singular/plural of "letter" and "error"
if $trialSumLetterScore = 1
set %letterScoreFeedback "You recalled " $trialSumLetterScore " letter correctly out of " $currentSetSize
else
set %letterScoreFeedback "You recalled " $trialSumLetterScore " letters correctly out of " $currentSetSize
fi
if $trialMathErrors = 1
set %mathScoreFeedback "You made " $trialMathErrors " mathematics error out of " $currentSetSize " problems."
else
set %mathScoreFeedback "You made " $trialMathErrors " mathematics errors out of " $currentSetSize " problems."
fi
set %mathPercentageCorrect "Percentage correct mathemathics problems: " $mathCorrectPerc "%"
# -- make sure that if you do letters-only or math-only, you only show relevant feedback
if &components = 1 # letters only feedback, delete math feedback
set %mathScoreFeedback " "
set %mathPercentageCorrect " "
fi
if &components = 2 # math only feedback, delete letter fe
set %letterScoreFeedback " "
fi
# -- ospan score so far (if in real block)
if BLOCKNUMBER = 4 and $trialMathErrors = 0 and $trialSumLetterScore = $currentSetSize
set &ospan increase $currentSetSize # o-span points are the sequence length
fi
if BLOCKNUMBER = 4 ## correct letters and math correct even if not all correct
set &lettersCorrectSoFar increase $trialSumLetterScore
set &mathCorrectSoFar increase $trialSumMathScore
fi
# -- show feedback on screen
font regular
if &components > 1 ## only show math correct percentage if there are math problems
show rectangle 0 -100 755 45 red
show rectangle 0 -100 750 40 yellow
show text %mathPercentageCorrect 0 -100 blue
fi
show text %letterScoreFeedback 0 0
show text %mathScoreFeedback 0 100
show bitmap keyContinue 0 200
readmouse l 1 999999
clear screen
## -- save to file -----------------------------------------
save BLOCKNUMBER BLOCKNAME &ospan &lettersCorrectSoFar &mathCorrectSoFar $mathRT1 $letterTaskRT &maxMathRT1 $mathCorrectPerc $currentSetSize $trialSumMathScore $trialMathErrors $trialSumLetterScore
task feedbackTask
show bitmap feedbackscreen
show bitmap keyContinue 300 241
set $ospanScorePerc expression &ospan / 75
set $ospanScorePerc round
set %ospanScoreText &ospan " points (" $ospanScorePerc "%)"
#-- individual math problems and letters
set $totalMathProblems &&mathCorrectBlockCount size
set $totalMathCorrect &&mathCorrectBlockCount sum
set $totalLetters &&lettersCorrectBlockCount size
set $totalLettersCorrect &&lettersCorrectBlockCount sum
#-- now calculate percentage maths problems (including indivual trials within trials)
set $mathCorrectPerc expression $totalMathCorrect / $totalMathProblems * 100
set $mathCorrectPerc round
set %mathCorrectPercText $mathCorrectPerc "%"
#-- now calculate percentage letters correct (not just whole suquences but individuals)
set $lettersCorrectPerc expression $totalLettersCorrect / $totalLetters * 100
set $lettersCorrectPerc round
set %lettersCorrectPercText $lettersCorrectPerc "%"
#-- now show on top of the feedback screen
text align left
show text %ospanScoreText 50 -200 black
show text %mathCorrectPercText 50 -100 black
show text %lettersCorrectPercText 50 -30 black
readmouse l 2 999999 range 2 2
#######################################################################################
block practiseLetters
message instruction1 mouse
set &&setSizesForBlock 2 2 3 3 ## 4 trials
set &components 1 # 1=letters only
task aoSpan 4
block practiseMath
message instruction2 mouse
set &&mathRT1s clear ## these will be used to calculate better maxRT
set &&mathRT2s clear
set &&setSizesForBlock 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 # this is irrelevant here, but you need some data in it
set &components 2 # 2=math only
task aoSpan 15
block practiseBoth
set &determineMathMaxRT 1 # only one time we need to calculate
set &&mathCorrectBlockCount clear 0 # reset to zero (for counting percentage of correct math trials)
message instruction3 mouse
set &&setSizesForBlock 2 2 2
set &components 3 # 3=math and letters
task aoSpan 3
block maindata
set &components 3 # 3=math and letters
set &&lettersCorrectBlockCount clear 0 # reset to zero
set &&mathCorrectBlockCount clear 0 # reset to zero
set &&tmpData 3 4 5 6 7
set &&setSizesForBlock &&tmpData times 3 # 3 x 5 = sequences = 15 trials
set &&setSizesForBlock shuffle
message instruction4 mouse
task aoSpan 15
## this final feedback block is not needed
## if you do not use it, you can calculate all data later offline
block feedbackBlock
task feedbackTask 1Download
| If you have a PsyToolkit account, you can upload the zipfile directly to your PsyToolkit account. Watch a video on how to do that. If you want to upload the zipfile into your PsyToolkit account, make sure the file is not automatically uncompressed (some browsers, especially Mac Safari, by default uncompress zip files). Read here how to easily deal with this. |
Related tasks
The PsyToolkit experiment library also has other memory span tasks, which you can find here
References
-
Turner, M. L., & Engle, R. W. (1989). Is working memory capacity task-dependent? Journal of Memory & Language, 28, 127-154.
-
Unsworth, N., Heitz, R. P., Schrock, J. C., & Engle, R. W. (2005). An automated version of the operation span task. Behavior Research Methods, 37, 498–505. https://doi.org/10.3758/BF03192720. Link to paper
